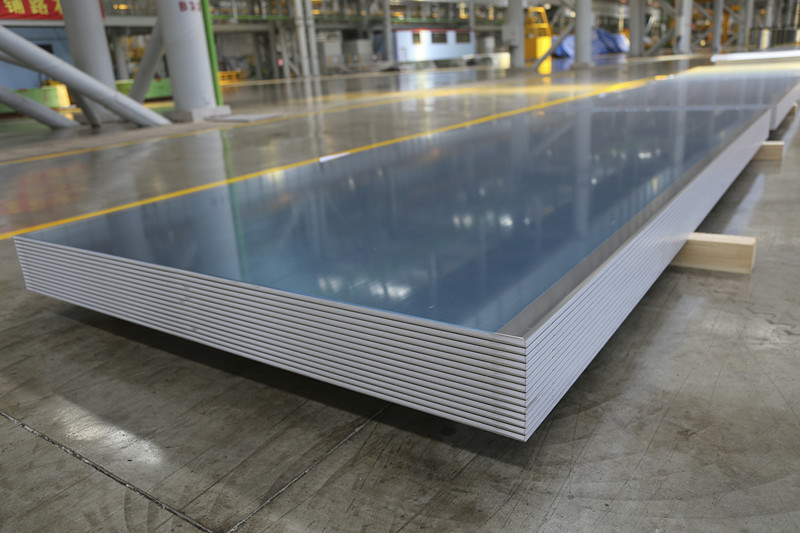

What is the 5083 Aluminum Sheet and Plate
5083 aluminum plate is renowned for its exceptional properties, making it a preferred choice in various industries. With high levels of magnesium and manganese, it offers superior corrosion resistance and excellent weldability, setting it apart in marine applications and other environments where durability is paramount.
The manufacturing process of 5083 aluminum plate involves advanced techniques that ensure consistent quality and performance. From the initial casting to the final rolling and annealing, each step is meticulously controlled to meet stringent quality standards, guaranteeing a product that is both reliable and efficient for end-use applications.
Specifications and customization
- Temper: O, H111, H112, H321, H116, H131, H12, H14, H16, H18, H22, H24, H26, H32, H34, H36, H38
- Equivalent name: A95083, AlMg4, 5Mn, DIN 3.3547, EN AW-5083, GM41, Al Mg4.5 Mn0.7
- Thickness:0.01”-9.84”(0.2mm-250mm, )
- Width:35.4”-104”(900mm- 2650mm)
- Lamination type: Blue film, transparent film, black and white film, paper (film thickness: 50 microns, 80 microns)
- Surface treatment: Mill finish, Bright, polished, hair line, brush, sand blast, checkered, embossed, etching, etc.
- Standard: ASTM B209, ASTM B928, MIL DTL46027, QQ-A-250/6
Properties and Composition
5083 Aluminum Plate is renowned for its exceptional properties that make it a preferred choice for various applications in the aerospace, marine, and automotive industries. This section delves into the unique characteristics and compositional elements that contribute to its widespread use.
Physical and Mechanical Properties
The 5083 aluminum plate boasts a combination of physical and mechanical properties that set it apart. It exhibits high strength-to-weight ratio, excellent corrosion resistance, and good formability, which are critical for applications where performance and durability are paramount.
Tensile strength (σb) | 110-136MPa |
Yield strengthσ0.2 (MPa) | ≥110 |
Elongationδ10 (%) | ≥20 |
Elastic modulus (E) | 69.3~70.7Gpa |
Annealing temperature | 415℃ |
- **Strength and Ductility**: With a tensile strength ranging from 190 to 310 MPa, 5083 aluminum plate can withstand significant stress without deformation. Its elongation percentage, typically between 8% and 12%, indicates good ductility, allowing for various forming processes.
- **Corrosion Resistance**: The alloy's high magnesium content provides natural protection against corrosion, making it suitable for environments with exposure to saltwater, chemicals, or moisture.
Chemical Composition
Understanding the chemical composition of 5083 aluminum plate is essential to grasp its properties fully.
Element | Composition % |
Al | REM |
Si | ≤0.4 |
Cu | ≤0.10 |
Mg | 4.0-4.9 |
Zn | ≤0.25 |
Mn | 0.40-1.0 |
Ti | ≤0.15 |
Cr | 0.05-0.25 |
Fe | ≤0.40 |
Note: Single≤0.05; Total≤0.15 |
Manufacturing Process
Production Techniques
The manufacturing process of 5083 aluminum plate involves several critical steps that ensure the material's superior quality and performance. Starting from the selection of high-grade aluminum ingots, the process includes melting, casting, homogenization, hot rolling, cold rolling, and finally, heat treatment.
Melting and Casting
The process begins with melting high-purity aluminum ingots in a controlled environment to achieve a uniform composition. The molten aluminum is then cast into large ingots, which are allowed to cool and solidify under precise conditions to ensure the desired crystalline structure.
Homogenization
The ingots are subjected to a homogenization heat treatment to eliminate any chemical segregation and to achieve a uniform distribution of alloying elements throughout the material.
Rolling Processes
Hot rolling is the first stage of rolling, where the ingots are heated and rolled into thinner plates. This process is followed by cold rolling, which further reduces the thickness and improves the mechanical properties of the 5083 aluminum plate.
Quality Control Measures
Throughout the manufacturing process, stringent quality control measures are implemented to ensure the 5083 aluminum plate meets the highest industry standards.
Inspection and Testing
Each stage of production is closely monitored, and the plates are inspected for any defects or irregularities. Various non-destructive testing methods, such as ultrasonic testing and eddy current testing, are employed to verify the internal and surface quality of the material.
Surface Treatment
After rolling, the 5083 aluminum plates undergo surface treatment processes, including pickling and passivation, to remove any surface contaminants and to enhance corrosion resistance.
Finishing and Packaging
The final steps in the manufacturing process include precise cutting to size, surface finishing, and packaging to ensure the 5083 aluminum plates are ready for distribution and application in various industries.
Cutting and Sizing
The aluminum plates are cut to the required dimensions using advanced cutting technologies to ensure precision and accuracy.
Surface Finishing
Various surface finishing options are available, such as mill finish, brushed finish, or anodized finish, to cater to specific application requirements.
Packaging and Shipping
The 5083 aluminum plates are carefully packaged to protect them from damage during transportation and are shipped to customers worldwide, ready for use in their projects.
Applications of 5083 Aluminum Plate
Marine Applications
The 5083 aluminum plate is renowned for its exceptional corrosion resistance, particularly in marine environments. Its high magnesium content provides excellent resistance to seawater, making it a preferred material for boat hulls, ship decks, and other maritime structures. The alloy's ability to maintain its strength and integrity in saltwater conditions without the need for frequent maintenance is a significant advantage for the marine industry.
Automotive Sector
In the automotive sector, 5083 aluminum plate is utilized for its lightweight properties, which contribute to fuel efficiency and reduced emissions. It is commonly found in the construction of vehicle bodies, engine parts, and structural components where a balance of strength and weight is crucial. The alloy's formability allows for complex designs, enhancing the aesthetic appeal and functionality of automotive parts.
Aerospace Industry
The aerospace industry demands materials that are both lightweight and strong, and 5083 aluminum plate meets these criteria. It is used in the manufacturing of aircraft components such as wings, fuselage panels, and internal structures. The alloy's resistance to fatigue and its ability to withstand the rigors of flight make it a reliable choice for aerospace applications.
Construction and Architecture
In construction and architecture, 5083 aluminum plate is valued for its durability and resistance to weathering. It is used in the fabrication of curtain walls, roofing systems, and structural supports. The alloy's resistance to corrosion ensures that these structures maintain their appearance and integrity over time, with minimal maintenance required.
Industrial Machinery
The industrial machinery sector benefits from the use of 5083 aluminum plate in the production of machine parts, such as gears, bearings, and casings. The alloy's strength-to-weight ratio and resistance to wear make it an ideal material for components that are subjected to high loads and require long service life.
Transportation Infrastructure
In transportation infrastructure, 5083 aluminum plate is used for its high strength and resistance to environmental factors. It is employed in the construction of trams, trains, and buses, as well as in the fabrication of bridges and support structures. The alloy's ability to withstand the demands of heavy loads and harsh conditions without compromising safety is a key factor in its selection for these applications.
Advantages Over Other Aluminum Alloys
5083 aluminum alloy plate stands out among other aluminum alloys for its unique combination of properties that make it highly desirable for various applications. Here's a detailed look at why 5083 aluminum plate is often the preferred choice:
Exceptional Corrosion Resistance
One of the key advantages of 5083 aluminum alloy is its superior corrosion resistance. With a high magnesium content, it forms a protective oxide layer that prevents rust and other forms of corrosion, making it ideal for marine applications and outdoor use where exposure to the elements is common.
Excellent Weldability
The weldability of 5083 aluminum plate is another significant advantage. It can be easily welded using various methods, including TIG and MIG, without compromising its structural integrity. This makes it a popular choice for projects that require fabrication and assembly.
High Formability
5083 aluminum alloy plate is known for its high formability, allowing it to be shaped into complex designs and structures. This property is particularly beneficial in industries such as automotive and aerospace, where lightweight and strong components are crucial.
Good Machinability
The machinability of 5083 aluminum plate is also noteworthy. It can be easily machined into various shapes and sizes, making it suitable for precision engineering and manufacturing processes.
Enhanced Strength-to-Weight Ratio
Compared to other aluminum alloys, 5083 offers an excellent strength-to-weight ratio. This characteristic is highly valued in industries where weight reduction is critical, such as transportation and construction.
Cost-Effectiveness
While 5083 aluminum plate offers premium performance, it is also cost-effective compared to other high-strength aluminum alloys. This makes it an attractive option for businesses looking to balance quality with budget constraints.
Wide Range of Applications
The versatility of 5083 aluminum alloy plate is evident in its wide range of applications, from shipbuilding and automotive components to architectural structures and decorative applications. This adaptability makes it a go-to material for diverse industries.
Sustainability
Lastly, 5083 aluminum plate contributes to sustainability efforts due to its recyclability. Aluminum can be recycled indefinitely without losing its properties, making it an environmentally friendly choice for manufacturers committed to reducing their carbon footprint.
