Aluminum Bar and Rod

According to the classification of appearance, aluminum bars and rods can be divided into aluminum round bars, aluminum square bars, aluminum flat bars, hexagonal aluminum bars, rectangular aluminum bars, triangle aluminum bars, and trapezoidal aluminum bars.

According to the classification of processing technology, aluminum bars can be divided into extruded aluminum bars rods, cast aluminum bars, forged aluminum bars, and precision-drawn aluminum bars.

According to alloy classification, aluminum bars rods can be divided into 1000 series aluminum bars rods, 2000 series aluminum bars rods, 3000 series aluminum bars rods, 4000 series aluminum rods, 5000 series aluminum bars rods, 6000 series aluminum bars and rods, and 7000 series aluminum bars and rods.

Aluminum Bar for Sale

Xienuo Enterprise is a professional extruded aluminum bars and rod manufacturer. We have a complete range of molds and can produce aluminum bars of various shapes according to customer needs, such as aluminum flat bars, aluminum square bars, aluminum round bars, angle bars, triangle aluminum bars, trapezoidal aluminum bars, etc.

We provide 1000 series aluminum bars, 2000 series aluminum bars, 3000 series aluminum bars, 5000 series aluminum bars, 6000 series aluminum bars and 7000 series aluminum bars. We have a large inventory of aluminum bars and rods. Welcome to consult us.

Aluminum alloy bar

• 1050 Aluminum Bar
• 1060 Aluminum Bar
• 2A12 Aluminum Bar
• 2A14 Aluminum Bar
• 2014 Aluminum Bar
• 2024 Aluminum Bar
• 5052 Aluminum Bar
• 5083 Aluminum Bar
• 5086 Aluminum Bar
• 5A02 Aluminum Bar
• 6061 Aluminum Bar
• 6063 Aluminum Bar
• 6082 Aluminum Bar
• 7050 Aluminum Bar
• 7075 Aluminum Bar

Customizable specifications

Shape: square aluminum bar, round aluminum bar, flat aluminum bar, hexagonal aluminum bar, L aluminum angle, aluminum T-bar, aluminum z bar.

Processing technology: cast aluminum bars, forged aluminum bars, precision-drawn aluminum bars, and extruded aluminum bars.

How are aluminum bars and rods produced?

Aluminum bars and rods with different needs have different sizes and mechanical properties. Smart engineers thought of using different ways to produce aluminum bars to meet customers' performance requirements for aluminum bars, which not only improves production efficiency but also saves costs.

Cast aluminum bar

Cast aluminum bars, also called aluminum billets, are generally used as raw materials for extruded aluminum bars rods. They have the advantages of a simple production process, high production efficiency, and low cost.

Process flow:

1. Material preparation, ingredients, and raw material preparation. According to the required aluminum alloy model and alloy composition, calculate the ingredients and prepare raw materials.
2. Smelting: Add raw materials and ingredients into the smelting furnace and heat them to the melting point to completely melt the raw materials.
3. Stir and remove slag. During the smelting process, stir the melt and remove the slag.
4. Sampling spectral analysis, by sampling the melt and conducting spectral analysis to determine whether the composition of the melt meets the requirements.
5. Adjust the composition. According to the spectral analysis results, adjust the composition of the melt.
6. Sample spectral analysis again. After adjusting the composition, sample the melt again for spectral analysis to ensure that the composition is correct.
7. Turn down the furnace after passing the test. If the adjusted melt meets the requirements, pour it into the mold.
8. Refining and degassing: remove impurities and gases from the melt through refining and degassing.
9. Refining and slag removal: perform slag removal on the refined melt.
10. Let it stand for a period of time to allow the ingredients in the melt to fully diffuse.
11. Take samples and inspect the melt again to ensure that its composition is correct.
12. Pour the aluminum water into the casting machine.
13. Casting: solidify the molten aluminum into aluminum rods through a casting machine.

Extruded aluminum bar

Extruded aluminum bars and rods are produced from aluminum billets through an extrusion machine. They are the most commonly used type of aluminum bars and have the characteristics of good mechanical properties, high precision, and good plasticity. It is produced by utilizing the good plasticity of the raw material aluminum bar and working together at a certain temperature through an extruder and a mold of a specific shape.

Process flow:

1. Preparation of raw materials, namely aluminum ingots.
2. Smelting, smelting aluminum ingots into liquid aluminum, and then making aluminum rods through casting and other processes.
3. Pretreatment of cast aluminum rods, including removal of surface oxide layer, cleaning, etc.
4. Heating, heat the pre-treated aluminum rod and put it into the extruder.
5. Extrusion, through the joint action of the extruder and the die, the aluminum rod is deformed into the required shape.
6. Cooling: The extruded product is cooled to solidify its shape.
7. During processing, perform surface treatment on the extruded product, including burr removal, polishing, etc.
8. Testing, quality testing, including testing of size, appearance, mechanical properties, etc.

Commonly used alloys for extruded aluminum bars and rods: 1050, 1060, 2011, 2014, 2017, 2024, 2618, 5052, 5083, 5086, 5454, 5754, 6061, 6063, 6082, 7003, 7022, 7050, 7055, 7075.

Drawing (fine drawing) aluminum bar

Drawn aluminum bars are generally further drawn on the basis of extruded aluminum bars or rods to achieve the required shape and size. The drawing process of aluminum and aluminum alloy products is generally carried out at room temperature, so it is often called cold-drawn aluminum bars.

Process flow:

1. Raw material preparation, usually extruded aluminum rods or cast aluminum bars that have been processed in advance
2. Drawing: Use a drawing machine to draw the extruded aluminum rod multiple times to reach the required diameter and length and strengthen its performance.
3. Saw the aluminum bar to obtain the aluminum bar of the required length.
4. Surface treatment of aluminum bars, such as anodizing or electroplating.
5. Quality inspection

Forged aluminum bar

Forgedaluminum bars are aluminum bars produced by repeatedly forging aluminum alloy raw materials through forging equipment.

There are generally two types of forging: die forging and free end. The specific method to choose for forging aluminum bars depends on the shape and size of the aluminum bar.

Process flow:

1. Raw material preparation, prepare aluminum alloy raw materials according to needs.
2. Forging, the aluminum alloy raw material is put into the forging machine and forged multiple times to make it reach the required size and enhance its performance.
3. Surface treatment, such as peeling, polishing, etc.
4. Testing: Use instruments and equipment to test the forged aluminum rods to see if they meet the required performance.

Extrudable aluminum bar shape

Aluminum extrusion is a plastic processing method. By exerting strong pressure on the aluminum blank placed in the mold cavity, the aluminum blank is forced to undergo directional plastic deformation and is extruded from the die hole of the extrusion die to obtain the desired cross-section shape.

• Xienuo’s customizable alloys: 2011, 2014, 2017, 2024, 5052, 5083, 5086, 5454, 5754, 6061, 6063, 6082, 7003, 7022, 7050, 7055, 7075.
• Processable Temper: O, H12, H14, H22, H24, H32, H34, H38, H111, H112, T3, T351, T4, T451, T6, T651, T6511, T7351.
• Extrudable shapes: aluminum flat bar, aluminum square bar, aluminum round bar, angle bar, T bar, Z bar, L bar (angle bar), etc. Other special-shaped bars or special shapes can be processed by new molds, please contact us.

Aluminum round bar

Aluminum round bars refer to aluminum bars with a circular cross-section. Round aluminum bars are the most common and widely used aluminum bars. We can further process the aluminum bars according to customer needs, such as sawing, polishing, etc.

Customizable sizes:

• Diameter: 3mm-350mm or customized
• Length: 1000mm-6000mm or customized

Aluminum square bar

An aluminum square bar refers to an aluminum bar with a square cross-section.

Customizable sizes:

• Side length: 6mm-160mm or customized
• Length: 1000mm-6000mm or customized

Aluminum flat bar

Aluminum flat bars refer to aluminum bars with a flat cross-section. Xienuo can customize different rounded corners according to customer needs.

We have a large inventory of Aluminum Flat Bars and can quickly complete material preparation and delivery. Commonly used in the power industry.

Aluminum flat bars are often called rectangular aluminum bars, aluminum busbars, etc.

Customizable sizes:

• Thickness: 1mm-160mm or customized
• Width: 6mm-570mm or customized
• Length: 1000mm-6000mm or customized

Hexagonal aluminum bar(hex bar)

Aluminum bars with a hexagonal cross-section. Typical applications include the production of a variety of fasteners, including nuts, bolts, and fasteners.

Customizable sizes:

• Side length: 6mm-80mm or customized
• Length: 1000mm-6000mm or customized

Trapezoidal aluminum bar

Aluminum rod with trapezoidal cross-section

Customizable sizes:

• Top side length: 6mm-80mm or customized
• Bottom length: 6mm-160mm or customized
• Height: 6mm-80mm or customized
• Length: 1000mm-6000mm or customized

Aluminum T bar

An Aluminum T bar is an aluminum bar with a cross-section like a letter T. It is also called a T profile, aluminum tee angle bar, or aluminum T angle bar. It is often used to make frames, decorations, and connectors, and is used in construction and mechanical equipment, aerospace and other fields that have a wide range of applications.

Customizable sizes:

• Width: 6mm-160mm
• Height: 6mm-160mm
• Thickness: 0.5mm-12mm
• Length: 1000mm-6000mm or customized

Aluminum Z bar

Aluminum bars with cross-sections resembling the letter Z are also called Z-shaped profile.

Customizable sizes:

• Width: 6mm-160mm
• Height: 6mm-160mm
• Thickness: 0.5mm-12mm
• Length: 1000mm-6000mm or customized

Aluminum angle bar

Aluminum angle bar is also called L-shaped bar. It is an aluminum bar with a cross-section like the letter L. It is also called an aluminum L bar or L profile.

An angle bar is usually produced by extrusion by an extruder. It is also called extruded aluminum angle bar.

Customizable sizes:

• Side length: 6mm-280mm
• Thickness: 0.5mm-12mm
• Length: 1000mm-6000mm or customized

Transactions and Services

• Production standards: GB, EN, ASTM, AISI, JIS, DIN, or other standards required by customers.
• Price Term: CIF CFR FOB EX-WORK
• Payment Term: TT, LC at sight, West Union,

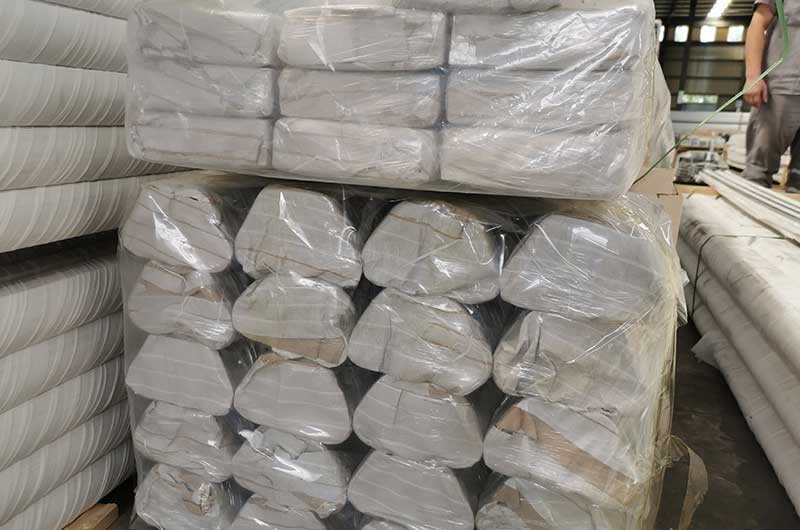

• Package Type: Standard seaworthy export packing with craft paper, anti-blushing agent, transparent plastic protective film, and wooden pallets. or according to the customers' request for aluminum coil
• Process types: sawing, milling, laser engraving, bending, anodizing, electrophoresis, spraying, etc.
• MOQ: Generally, the trial order will be accepted. The MOQ can be confirmed according to the different products. (100kgs for ready stock)
• Supply Ability: 2, 000 Tons per Month
• HS code: 76041010, 76042990.

Why choose us

Xienuo Enterprise is a professional aluminum bar and rod manufacturer in China, providing a complete set of aluminum bar solutions. We have a 12, 500-ton horizontal extrusion press, a 2, 800-mm hot and cold rolling mill, and a 6, 000-ton stretch straightener.

Product advantages:

• Uniform color, smooth surface, clean, no oil spots, no color difference
• Good quality, low price
• Advanced and complete equipment, capable of customizing the production of extra large diameter aluminum bars
• The testing equipment is complete and can complete all aluminum bar testing, such as tensile strength testing, flaw detection, etc.

Product certification: CE, ISO9001, etc.

Product testing: Support third-party testing, support flaw detection, tensile strength testing, straightness testing and other testing to ensure that the aluminum bar delivered to customers is qualified.
